Reinventing Bicycle Brakes

A Regenerative, Anti-Lock Front Braking System

In the ever-evolving world of cycling, one key component has remained largely unchanged for decades: the bicycle brake. Traditionally, brakes rely on friction pads clamping down on a rim or disc, converting a rider’s kinetic energy into heat and waste. However, an exciting concept has emerged that could transform how we brake — and power our electronics — on a bike: a front-wheel regenerative and anti-lock braking system.

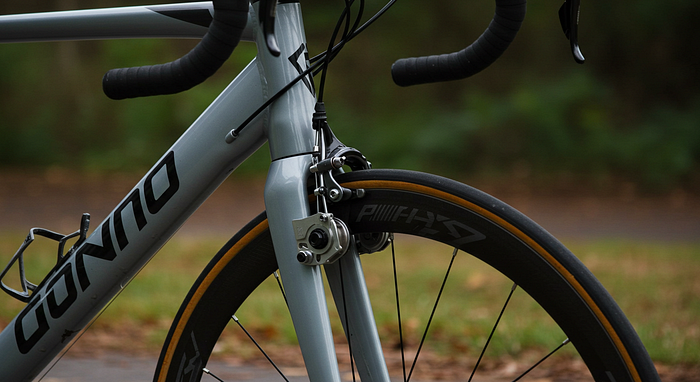

Regenerative breaks for any kind of bike. (concept)

The Inspiration

Modern cyclists use cellphones for navigation, fitness tracking, and staying connected. All that constant GPS use drains batteries quickly, forcing riders to carry extra power banks or risk running out of juice mid-journey. At the same time, e-bikes and advanced cycling gear hint at the growing role of electronics in everyday riding. So why not harness some of the energy lost during braking to power a phone or accessories?

How It Works

1. Generators Instead of Brake Pads
   Rather than traditional rubber or metal pads that clamp onto the rim, small generators are mounted near the front wheel. When the rider pulls the front brake lever, these generators are pressed against the rim or a disc-like surface, creating electromagnetic drag instead of frictional drag.
2. Limited Drag = Anti-Lock Protection
   Because the system relies on electromagnetic force, there is a finite upper limit to how much braking torque it can produce at any given speed. The faster the wheel spins, the more electricity is generated — and the more braking force you feel. But once you slow down, the electromagnetic drag naturally diminishes. This self-regulating effect makes wheel lock-up nearly impossible. In other words, the front wheel never seizes abruptly, preventing spills and increasing rider confidence.
3. Energy Capture
   In a traditional braking system, all kinetic energy is lost as heat. In a regenerative system, a portion of that energy is diverted into a battery or supercapacitor on the bike. A small controller regulates the voltage and current to keep the flow steady and safe, sending surplus energy to charge a smartphone, bike lights, or a GPS unit.
4. Rear Brake Still Rules
   Despite its clever design, the front generator-brake is not the bike’s primary stopping force. The rear brake (mechanical or hydraulic) remains the main way to rapidly decelerate. The front regenerative system simply adds a layer of safety and utility — fine-tuning speed, reducing wear on the rear brake, and powering electronics.

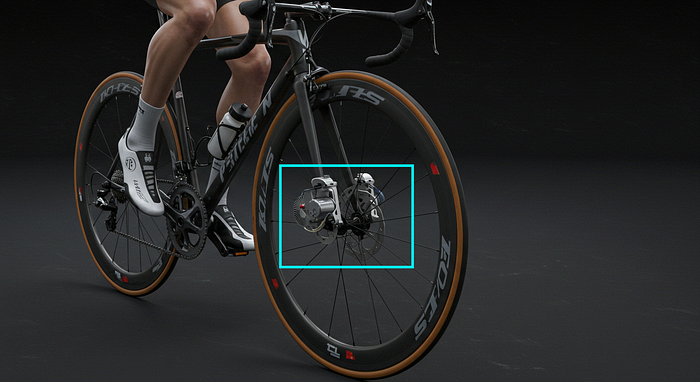

Generators replace the braking pads are almost unnoticeable (concept)

Similarities with Commercial Airline Landing Gear

If the concept sounds futuristic, consider that large aircraft employ electromagnetic or eddy current braking to help slow their landing gear wheels, especially in high-speed phases. Just as with the bicycle concept, the drag is proportional to wheel speed: faster rotation generates stronger braking force. It’s a smooth, consistent way to dissipate kinetic energy — and, in the bike’s case, reclaim some of that energy for powering devices.

See more info below

Eddy current brake - Wikipedia

Key Benefits

1. Anti-Lock Function
   The hallmark of anti-lock braking (ABS) is preventing wheels from seizing under heavy braking or slippery conditions. Because the generator imposes a consistent, non-clamping drag, it can’t lock up the front wheel. This reduces the risk of dangerous skids and helps the rider maintain control.
2. Regenerative Power
   The front brake doubles as a tiny power station. Long descents, frequent stop-and-go traffic, or even a quick ride around town can generate enough energy to keep a phone or lights charged. This system is especially helpful on extended tours where access to power outlets might be limited.
3. Reduced Maintenance
   Compared to traditional brake pads that wear out over time, a properly designed generator brake experiences less direct friction. Some mechanical contact exists (to maintain traction with the wheel), but a significant portion of the braking force is electromagnetic, limiting wear and tear.
4. Eco-Friendly Innovation
   By reclaiming energy normally lost as heat, the system promotes an eco-conscious approach to cycling. While the power gains may be modest on a per-ride basis, multiplied across thousands of bikes, it can make a noticeable environmental difference.

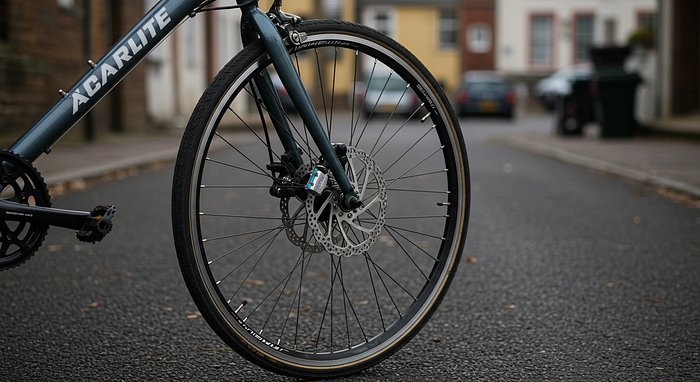

Simple replacing braking pads with generator (concept)

Challenges and Considerations

1. Heat Dissipation
   Even with electromagnetic braking, some friction and electrical components produce heat. Engineering robust materials and heat-sink features will be crucial to ensure reliability and longevity.
2. Complexity and Cost
   A generator-based front brake introduces electronic controls, sensors, and a battery or supercapacitor. This inevitably raises manufacturing costs and adds weight. However, mass adoption and future refinements may mitigate both downsides.
3. Regulatory Hurdles
   Bicycles with integrated electronics and advanced braking systems might face certification or legal standards in certain regions, just as e-bikes do. Early adopters may need to navigate a patchwork of local regulations.
4. Practical Energy Return
   While any reclaimed energy is an improvement over total loss, realistically, the amount may be modest. The design must balance energy recovery with effective braking. If the braking force is too limited, the bike won’t stop effectively. If it’s too aggressive, it could drain the rider’s momentum excessively.

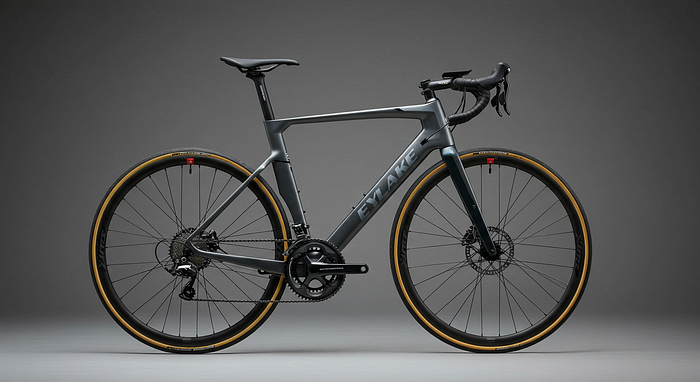

Experimental Design (concept)

Real-World Outlook

As city planners and cycling enthusiasts aim for greener, more connected transportation, an integrated front generator-brake system could be the next step in bicycle evolution. Just imagine a commute where every time you stop at a red light, you’re not just slowing the bike — you’re also topping up your phone battery. Riders could track energy recovery in real-time on a bar-mounted display or a smartphone app, turning daily trips into a mini personal-power experiment.

Though still in concept and early development, regenerative braking for bicycles aligns with broader trends: micro-mobility, wearables, and on-the-go connectivity. With the right partnerships between bike manufacturers, electronics firms, and urban innovators, a future of bikes that never suffer a dead phone battery — and rarely experience front-wheel lock-up — might not be far away.

Conclusion

This front-wheel regenerative and anti-lock braking system demonstrates a bold vision for cycling’s future. By harnessing the same physics that large aircraft use and directing energy into modern electronics, it promises a safer, smarter, and more sustainable ride. While practical challenges remain — heat management, cost, regulatory approvals — its potential to enhance both safety and utility makes it a concept worth watching. As cycling continues to gain momentum worldwide, innovations like these could steer us toward a new era of efficient, tech-enabled two-wheel travel.

Eddy Current Braking & Generating Electricity

It is possible to build a generator that incorporates eddy current braking, essentially using the same mechanism to both generate electricity and provide braking force by harnessing the induced eddy currents in a conductive disc or rotor when it spins near a magnetic field; this is often referred to as a “regenerative braking system” where the braking energy is converted into electricity that can be stored and reused.

Key components and how it works

• Rotating Disc/Rotor: A conductive metal disc or rotor that spins between the poles of a magnet.
• Magnetic Field: A set of magnets positioned to create a strong magnetic field through which the rotating disc moves.
• Coil Windings: Coils of wire strategically placed around the magnets to capture the induced electrical current generated by the changing magnetic flux as the disc spins.

How it functions as a generator and brake

• Generating Electricity: When the disc spins, the changing magnetic field induces eddy currents within the disc according to Faraday’s law of electromagnetic induction. These eddy currents can be captured by the surrounding coils, generating electricity.
• Braking Action: The induced eddy currents create their own magnetic field that opposes the original magnetic field, creating a resistive force against the rotation of the disc, acting as a brake.

Important factors to consider

• Design of the magnetic field: The strength and configuration of the magnetic field directly affects the amount of braking force and electricity generated.
• Material of the disc: The conductivity of the disc material significantly impacts the strength of the eddy currents and thus the braking and power generation capabilities.
• Coil design: The coil arrangement needs to be optimized to efficiently capture the induced currents.

Applications

• Electric vehicles: Regenerative braking systems in electric cars use a similar principle to recapture energy during deceleration.
• Industrial machinery: Large machines can use eddy current brakes for controlled deceleration and energy recovery.
• Wind turbines: Some wind turbine designs incorporate eddy current braking to manage rotational speed during extreme weather conditions.

Eddy current brake - Wikipedia

SAMPLE PATENT APPLICATION

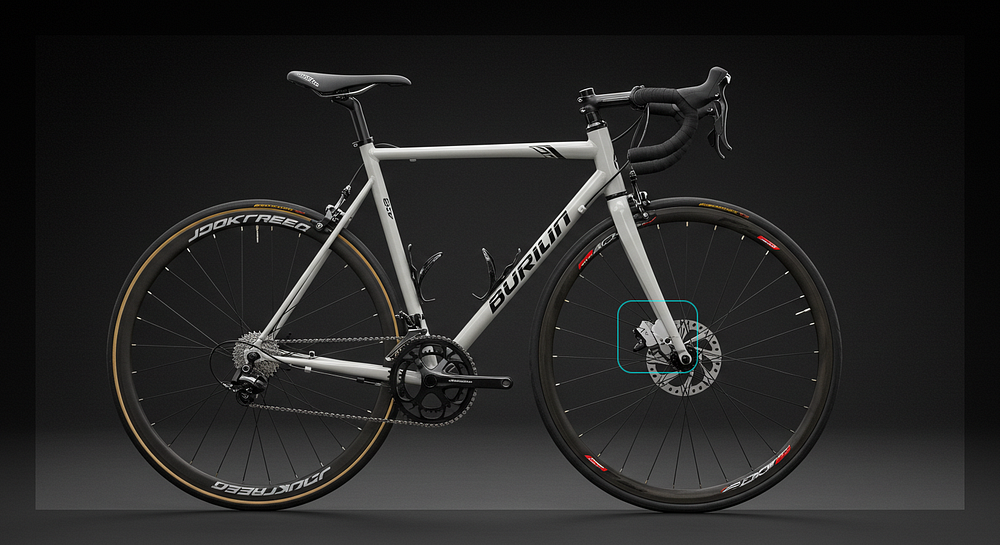

Generators for braking (concept)

Title of Invention

REGENERATIVE AND ANTI-LOCK FRONT BRAKING SYSTEM FOR BICYCLES

BACKGROUND

Field of the Invention

The present invention generally relates to bicycle braking systems. More particularly, it pertains to a generator-based braking assembly for a bicycle’s front wheel that provides both regenerative energy capture and anti-lock functionality.

Description of Related Art

Bicycle braking mechanisms typically rely on friction pads that clamp onto a rim or rotor to decelerate. While effective, these methods convert kinetic energy entirely into heat. Moreover, there is a risk of front wheel lock-up if the brakes are applied too forcefully. Existing systems such as hub dynamos generate electrical power but are typically not integrated into a braking function. Furthermore, anti-lock braking systems (ABS) designed for bicycles are mechanically complex and expensive.

Commercial aircraft and some high-end transport systems utilize induction or eddy current braking, which converts kinetic energy into electricity, reducing wear and simplifying speed control. However, these systems have not been widely adapted for standard bicycles due to size, weight, and cost constraints.

SUMMARY OF THE INVENTION

The present invention addresses these concerns by integrating a generator assembly with the front wheel braking mechanism of a bicycle, providing two key functionalities:

1. Regenerative Braking — Kinetic energy from the rotating front wheel is partially converted into electrical energy via electromagnetic induction. This energy is then stored in a battery, capacitor, or supercapacitor on the bicycle, enabling the rider to power or charge electronic devices such as mobile phones, lights, or GPS units.
2. Anti-Lock Behavior — Because braking force is induced primarily through electromagnetic drag rather than friction, the maximum braking torque is limited by the generator’s electrical load capacity. This naturally prevents abrupt lock-up of the front wheel, improving stability and safety, particularly in wet or slippery conditions.

By supplementing or partially replacing traditional brake pads with a generator-based assembly, the present invention provides added utility — on-the-go charging — while enhancing rider safety through controlled, self-regulating deceleration on the front wheel. The main mechanical brake on the rear wheel remains the primary source of stopping power, ensuring reliable, robust braking performance.

BRIEF DESCRIPTION OF THE DRAWINGS

1. FIG. 1 — A side view of a bicycle with the regenerative and anti-lock front braking system installed.
2. FIG. 2 — A cross-sectional illustration of the generator assembly mounted at the front fork and rim interface.
3. FIG. 3 — A schematic block diagram of the electrical system, showing the generator, controller, battery/supercapacitor, and optional device-charging interface.
4. FIG. 4 — A flow chart detailing the control algorithm for modulating electromagnetic braking force and preventing wheel lock-up.

DETAILED DESCRIPTION OF THE PREFERRED EMBODIMENTS

System Overview

Referring to FIG. 1, a conventional bicycle (100) includes a front wheel (110), a rear wheel (120), a frame (130), and a handlebar assembly (140). In the illustrated embodiment, the front wheel (110) is equipped with a Regenerative and Anti-Lock Front Braking System (200). The rear wheel (120) retains a standard mechanical or hydraulic disc brake (125).

Generator Assembly

As shown in FIG. 2, the generator assembly (210) is mounted near the front rim (115) or a dedicated friction disc (117) attached to the wheel hub. This generator assembly (210) may comprise:

• Rotor / Induction Element (211): A conductive surface or small rotor disk that rotates with the front wheel.
• Stator Coils (212): Fixed coil windings mounted on the bicycle fork (150) in close proximity to the rotating rotor (211).
• Press/Contact Mechanism (213): A bracket or actuator ensuring the coils or an auxiliary frictional contact roller engages the rim or rotor when the front brake lever is pulled. The pressure applied can be manually adjusted or servo-controlled.

During operation, pulling the brake lever (160) causes the assembly (210) to press lightly against the rim or dedicated rotor. This slight frictional contact ensures the stator is driven by the wheel, while relative motion in the magnetic field induces electrical current.

Anti-Lock Function

The electromagnetic braking effect is governed by the speed of rotation. At higher speeds, more current is generated, thereby increasing braking torque. As speed decreases, the braking torque diminishes. Because no direct clamping force is applied (as in friction pads), the front wheel (110) is unlikely to lock unless external conditions (e.g., a seized bearing) intervene. This inherent self-limitation provides an anti-lock effect, preventing the abrupt cessation of wheel rotation.

Moreover, an optional sensing and control module (300) (see FIG. 3) may actively monitor wheel speed via a magnetic or optical sensor (301). Should the wheel decelerate too rapidly, the controller (302) can reduce the electrical load to modulate the braking force, thereby further preventing lock-up.

Energy Storage and Control

Referring to FIG. 3, the induced current is routed through the system’s controller (302) to a battery pack or supercapacitor (310). A voltage regulation unit (320) ensures consistent charging behavior. Surplus energy can be made available to charge rider devices (e.g., smartphone, GPS) through a USB port (330) or wireless charging interface.

Mechanical Support and Safety

A minimal friction backup pad (340) or mechanical clamp can be integrated to provide contingency braking in the event of electrical or mechanical failure in the generator assembly. This pad remains disengaged under normal conditions, engaging only if an emergency override is triggered or if system diagnostics detect a fault.

Control Logic

FIG. 4 depicts a flow chart:

1. Wheel Speed Detection: Sensor (301) measures front wheel RPM.
2. Brake Input: Brake lever (160) position corresponds to desired braking level.
3. Load Adjustment: The microcontroller (302) adjusts the electrical load on the generator (210) to achieve the requested deceleration rate.
4. Lock-Up Threshold: If wheel RPM is dropping too fast, the system reduces the load to prevent lock-up.
5. Energy Management: The captured energy is stored in the battery/supercapacitor (310), subject to safe charging thresholds determined by the voltage regulator (320).

CLAIMS

What is claimed is:

1. A regenerative, anti-lock front braking system for a bicycle, comprising:
   a) a front wheel having a rotatable element;
   b) a generator assembly including at least one stator coil and a corresponding rotor or conductive surface operatively coupled to the rotatable element; and
   c) a brake lever or actuator configured to selectively engage the generator assembly with the rotatable element,
   wherein electromagnetic drag generated by said generator assembly provides braking force to the front wheel without fully locking it.
2. The system of claim 1, wherein the generator assembly is adapted to convert at least a portion of the wheel’s kinetic energy into electrical energy stored in a battery, capacitor, or supercapacitor mounted on the bicycle.
3. The system of claim 2, further comprising a voltage regulation unit electrically coupled to the generator assembly, said voltage regulation unit configured to supply power to at least one external device or accessory.
4. The system of claim 1, wherein the maximum braking force generated by the generator assembly is limited by the electrical load capacity, thus providing an inherent anti-lock effect on the front wheel.
5. The system of claim 1, further comprising a control module configured to:
   a) monitor the rotational speed of the front wheel;
   b) modulate the electrical load applied to the generator assembly; and
   c) prevent excessive deceleration of the front wheel that could lead to a lock-up.
6. The system of claim 5, wherein the control module comprises a microcontroller, a wheel speed sensor, and an interface to selectively adjust the generator’s load based on the sensed wheel speed and rider braking input.
7. The system of claim 1, wherein the generator assembly is mounted in lieu of or alongside traditional brake pads at the front rim or disc of the bicycle.
8. The system of claim 1, further comprising a minimal friction backup brake pad or mechanical clamp configured to engage the wheel or rotor in the event of an electrical or mechanical failure of the generator assembly.
9. The system of claim 1, wherein the brake lever or actuator includes a user-adjustable tension mechanism enabling variable pressure on the generator assembly, thereby controlling the strength of the electromagnetic braking force.
10. The system of claim 1, wherein the bicycle further includes a rear mechanical or hydraulic brake configured to provide primary stopping power, with the front regenerative assembly acting as a supplementary or secondary braking mechanism.

Figures

Fig 1

           (140) Handlebar
               |
        (130) Frame
               |
   Rear Brake  (125)
 (120)  Wheel=========Frame=========Wheel (110)  Front
          |                           |
          |                           | (150) Fork
          |                           |
          \-------  (200)  -----------/
                    Front Regenerative
                   & Anti-Lock System

Description

• Shows a side view of a typical bicycle (100).
• The rear wheel (120) has a traditional mechanical/hydraulic brake (125).
• The front wheel (110) incorporates the “Regenerative and Anti-Lock Front Braking System” (200).
• The frame (130) and handlebar (140) are standard bicycle components.
• The fork (150) attaches the front wheel (110) to the frame.

Fig 2

   (150) Fork
     |
     |_____ (213) Contact Mechanism / Bracket
           |    ___ (211) Rotor Disc or Rim
           |   /   \
           |  /     \
(212) <==== | /       \ ====> (212)
  Stator Coils          Stator Coils
           | \       /
           |  \_____/
           |      (210) Generator Assembly
           |
         (160) Front Brake Lever

Description

• Illustrates how the generator assembly (210) is positioned to engage the rotor disc (211) or bicycle rim.
• Stator coils (212) are fixed, while the rotor disc (211) rotates with the wheel.
• The contact/bracket mechanism (213) moves the generator assembly into light contact or proximity when the rider pulls the front brake lever (160).
• Note that friction contact can be slight — enough to ensure rotation of the generator’s rotor or the small friction roller.

Fig 3

  (301) Wheel Speed Sensor
           |
           v
   +----------------+    +---------------------+
   |  (302)         |    |   Battery/Capacitor | (310)
   | Control Module |--->|   Storage           |
   |  - Microcontroller  |    (320) Voltage    |
   |  - Load Control     |     Regulator       |
   +----------------+    +---------^-----------+
                |                   |
                |                   v
       +------------------+     (330) USB/Wireless
       |  Generator (210) |----> Charging Output
       +------------------+

Description

• A simplified schematic illustrating the control flow.
• The wheel speed sensor (301) feeds data to the control module (302).
• The control module (302) regulates how much electrical load is applied to the generator (210).
• Electricity produced is stored in a battery or capacitor (310), passing through a voltage regulator (320) for safe, stable output.
• A charging port (330) allows the rider to power external devices.

Fig 4

 ┌───────────────────────────┐
 │ Start / Idle Mode         │
 └────────────┬──────────────┘
              v
 ┌───────────────────────────┐
 │ Detect Brake Lever Input? │
 │ (Lever Pull > Threshold)  │
 └────────────┬──────────────┘
     Yes      |      No
              v
 ┌───────────────────────────┐
 │ Measure Wheel RPM (301)   │
 │ & Rider Brake Demand      │
 └────────────┬──────────────┘
              v
 ┌───────────────────────────┐
 │ Apply Gen Load Based on   │
 │ Speed & Brake Demand      │
 └────────────┬──────────────┘
              v
 ┌───────────────────────────┐
 │ Check for Rapid Decel /   │
 │ Potential Lock-Up         │
 └────────────┬──────────────┘
     Yes      |      No
 ┌─────────── v ─────────────┐
 │ Reduce Load to Maintain   │
 │ Wheel Rotation            │
 └────────────┬──────────────┘
              v
 ┌───────────────────────────┐
 │ Store Energy (Battery)    │
 │ & Output to Devices       │
 └────────────┬──────────────┘
              v
 ┌───────────────────────────┐
 │ End / Return to Idle      │
 └───────────────────────────┘

Description

• Depicts a basic software flow for the system’s microcontroller.
• If the front brake lever is pressed, wheel RPM is measured and electromagnetic load is adjusted.
• If sensor data indicates a too-rapid slowdown, the load is reduced.
• Captured energy goes into a battery or capacitor and can be used for device charging.

ABSTRACT

A regenerative, anti-lock front braking system for bicycles is disclosed. The system replaces or supplements conventional front brake pads with a generator assembly that converts kinetic energy into electrical power, which can be stored on board to operate or charge auxiliary devices. Electromagnetic drag produced by the generator inherently limits maximum braking force, serving as a built-in anti-lock feature that prevents abrupt front-wheel lock-up. A control module monitors wheel speed and modulates load to maintain safe deceleration, while a rear mechanical brake remains the primary stopping method. This invention enhances rider safety, reduces front brake wear, and enables riders to harvest energy for electronics during normal bicycle operation.

END OF SAMPLE PATENT APPLICATION
